產品中心
 |
|

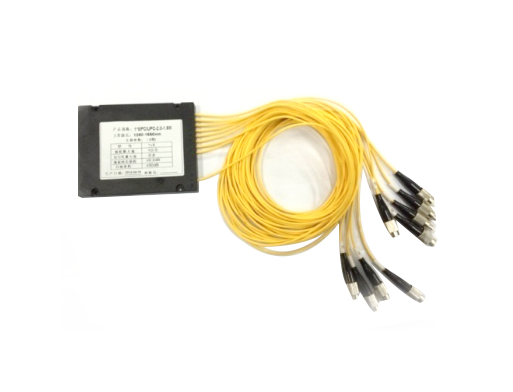

光分器 ———— |
|
|
低插損｜低偏振相關損耗｜高穩定性及高可靠性 |
|
|
|
光纖到點FTTX／光纖到戶FTTH／光無源網絡PON／有線電視CATV
|
| 產品型號 | 產品類型 | 工作波長 | 分配路數 | 插入損耗 | 回波損耗 | 偏振相關損耗 | 均勻性 | 方向性 | 接頭形式 |
| (nm) | (dB) | (dB) | (dB) | (dB) | (dB) | ||||
| HT.PLC-1002-PA2101 | 插片式 | 1260～1650 | 2 | 4.2 | 50 | 0.3 | 0.8 | 55 | SC/FC/LC |
| HT.PLC-1004-PA2101 | 4 | 7.6 | 50 | 0.3 | 0.8 | 55 | SC/FC/LC | ||
| HT.PLC-1008-PA2101 | 8 | 10.8 | 50 | 0.3 | 1 | 55 | SC/FC/LC | ||
| HT.PLC-1016-PA2101 | 16 | 13.9 | 50 | 0.3 | 1 | 55 | SC/FC/LC | ||
| HT.PLC-1032-PA2101 | 32 | 17.2 | 50 | 0.3 | 1.6 | 55 | SC/FC/LC | ||
| HT.PLC-1064-PA2101 | 64 | 20.6 | 50 | 0.5 | 2 | 55 | SC/FC/LC | ||
| HT.PLC-1002-BF3101-L1-L2 | 盒式 | 2 | 4.2 | 50 | 0.3 | 0.8 | 55 | SC/FC/LC | |
| HT.PLC-1004-BF3101-L1-L2 | 4 | 7.6 | 50 | 0.3 | 0.8 | 55 | SC/FC/LC | ||
| HT.PLC-1008-BF3101-L1-L2 | 8 | 10.8 | 50 | 0.3 | 1 | 55 | SC/FC/LC | ||
| HT.PLC-1016-BF3101-L1-L2 | 16 | 13.9 | 50 | 0.3 | 1 | 55 | SC/FC/LC | ||
| HT.PLC-1032-BF3101-L1-L2 | 32 | 17.2 | 50 | 0.3 | 1.6 | 55 | SC/FC/LC | ||
| HT.PLC-1064-BF3101-L1-L2 | 64 | 20.6 | 50 | 0.5 | 2 | 55 | SC/FC/LC |
